Expamet 47mm Masonry (built-in) Single Piece Joist Hanger
From
£3.84
£3.20
Sold by / EA
Delivery:
Select an option to check availability.
Collection
Select an option to check availability.

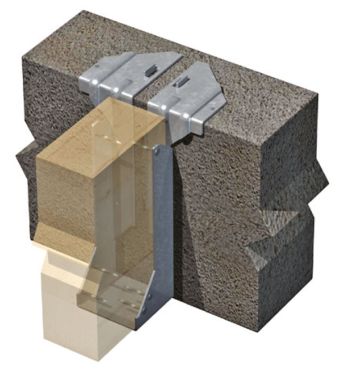

The BAT S.P.H. Joist Hanger is a single piece timber to masonry for building into the inner leaf of external cavity walls and internal walls.
Features & Benefits
Single-piece, non-welded construction Wider masonry flange to increase loadings on masonry of compressive strength 2.8N/mm² and greater Manufactured from 2mm thick pre-galvanised mild steel to BS EN 10346: 2015, DX51D+Z600 75mm load bearing surfaces All hangers 150mm deep and over are manufactured 10mm less to allow for notching and regularisation of timber joists Gusset nail holes are non-coaxial
Product Specs:
Sales Unit
EA
Weight
0.34Kg
Length
100mm
Width
47mm
Gauge
2.0mm
Use
Internal
Fire Rating
Euroclass A1
Type
Masonry (built-in) Single Piece Joist Hanger
Finish
600g/m² Galvanised Coating
Plaster/Render/Joist Depth
47mm Joist Width
Brand
Expamet
Material
Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit
EA
Weight
0.34Kg
Length
100mm
Width
47mm
Gauge
2.0mm
Use
Internal
Fire Rating
Euroclass A1
Type
Masonry (built-in) Single Piece Joist Hanger
Finish
600g/m² Galvanised Coating
Plaster/Render/Joist Depth
47mm Joist Width
Brand
Expamet
Material
Galvanised Mild Steel DX51D+Z600 to EN10346:2015
